Water Spray Retort Machine for Canning Food Bottle Juice Food Plant Sterilizer Autoclave PLC Touch Control
For high temperature sterilization of fruits, vegetables, meat, fish, convenience foods, etc.
Packaging Container: PP bottles, HDPE bottles
Glass Container: glass jar, glass can
Metal Containers: tin cans
Aluminum cans plastic containers
Soft bag packaging: aluminum foil bag, transparent bag, vacuum bag, cooking bag and so on
Scientific experiments show that the best sterilization temperature of the tide type brine food is 121 DEG, the best sterilization time is 12min, which can not only ensure the good sterilization effect, but also keep the flavor of the brine.
Mainly applicable to canned food (such as meat, fish, eggs, vegetables etc.), protein beverage (milk, soy milk, coconut milk, peanut milk, walnut milk, almond milk etc.), hard cans (tin cans, glass bottles, cans etc.) and various kinds of soft packaged food.
Soft-packed beef jerky sterilization retort machine Soybean sterilization retort autoclave price Computer-automatic retort sterilizer have many delicious small foods on the market, (canned, shredded bacon) and so on. The taste is very delicious. But what do your manufacturers use to sterilize them? Let me tell you about what equipment is used to sterilize food.
Flexible packaging beef jerky sterilization retort machine, dry bean sterilization retort price computer automatic sterilization retort's temperature is very stable, uniform heat distribution to ensure more uniform transfer and distribution of heat, three fan nozzles on each side of the inner tray in the sterilization tank The nozzle sprays the hot water evenly in a fan shape, and the hot water shower system uniformly heats the materials in each layer of the tray. At the same time, the temperature inside the tank is kept stable at all stages of the whole sterilization process to ensure accurate calculation of the F value. To reduce excessive high temperature cooking to a minimum
|
Model No. |
Diameter |
Length |
Capacity |
Thickness |
Design Temp | Design Pres |
| PLJ.09-1.8 B.4 |
900mm |
1800mm |
1.14m³ |
4mm |
121C |
0.35MPa |
| PLJ.10-2. B.4 |
1000mm |
2000mm |
1.57m³ |
4mm |
121C |
0.35MPa |
| PLJ.12-2.2 B.4 |
1200mm |
2200mm |
2.48m³ |
5mm |
121C |
0.35MPa |
| PLJ.14-3 B.4 |
1400mm |
3000mm |
4.61m³ |
5mm |
121C |
0.35MPa |
1. Uniform temperature distribution:In the process of heating and sterilization, the water is continuously sprayed from nozzles adopted high speed spraying, so that the temperature in the pot is kept stable and the sterilization effect is improved.
2. Direct heating and indirect cooling, and prevent the second pollution. Sterilizing and cooling processes use the same water. Circulating water is directly heated by steam diffusion tube in the heating process. Under 0.5MPapressure, it only takes 6-12min to rise the temperature from 20 DEG to 121 DEG. Continuous cooling by heating exchanger is isolated from the products, preventing the second pollution in the cooling effectively.
3. Full-automatic control system:
a. Siemens Touch Screen
b. No-paper recorder
c. Imported Automatic Valves
d. Many sterilization techniques in memory for your choice. At most could save 250sterilization formula.
4. Pressure control system independently, suitable for gas packaging sterilization: Pressure control
error is within 0.005Mpa. Pressure control system can correct and balance the pressure inside of the pot and packing automatically, not damaging the packing or the contents.
Water spray autoclave/retort/sterilization pot
Model No. Outside Measurement(mm) Inner Diameter(mm) Vessel Length(mm) Capacity(m³) Thickness of Autoclave(m) Max Working PRE.(Mpa) Max Working TEP.(℃)
5. Heating and cooling in stages can reduce the temperature difference between the surface and the center of the food in protection of fragile food and glass bottles.

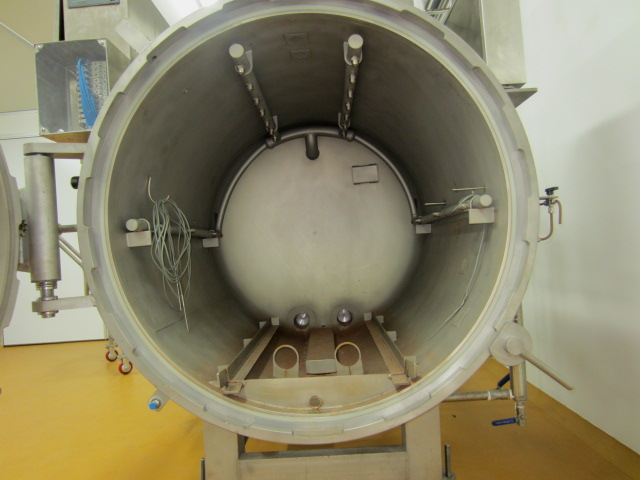

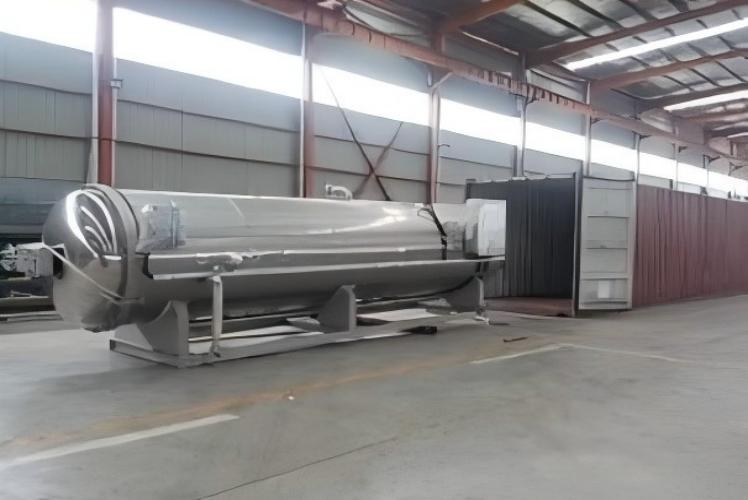

Cylinder
Retort cylinder is main part of the whole retort machine. We do it by using SUS304 material to guarantee the retort quality and food quality after sterilization.
Autoclave dish
Retort dish is main part of retort door, it also made of SUS304, this retort dish is specially designed for food sterilization and for retort good sealing with good performance.

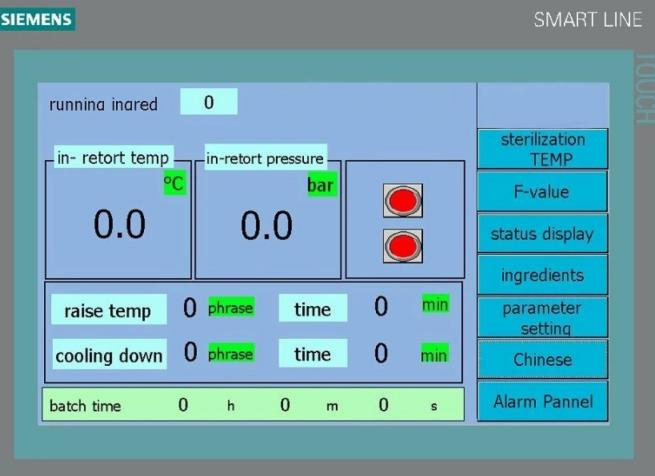

Siemens Touchscreen
Siemens touchscreens enable precise parameter settings with one-touch configuration.

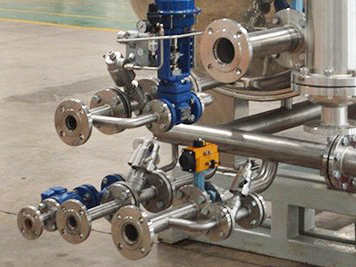

Control Valves
England Spaisak Valves, to achieve accurate control and good sterilization effect, energy saving.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

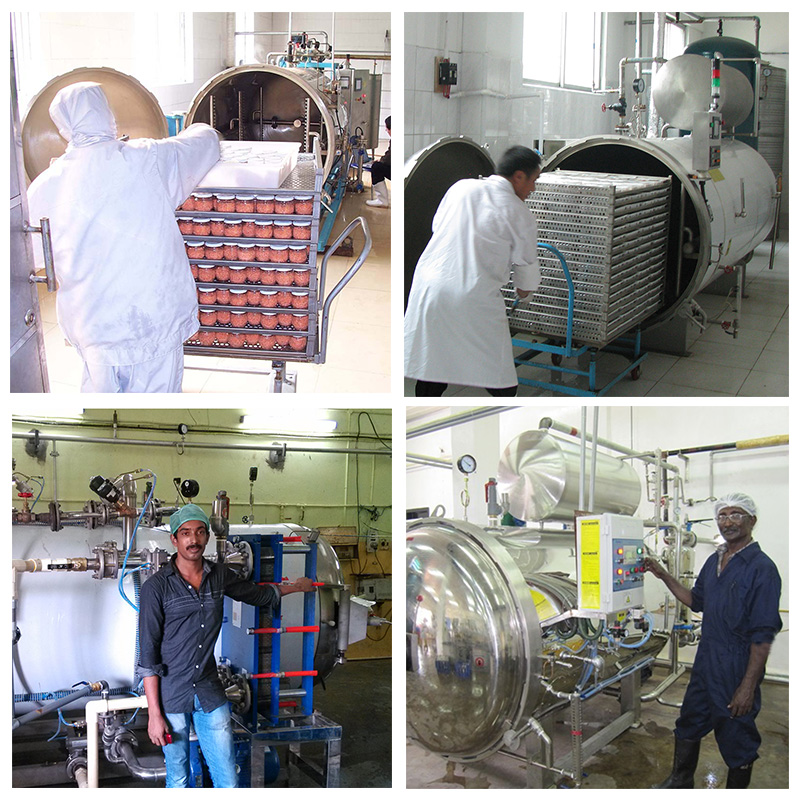

Visiting customers
If you want to know more about our products, welcome to our company for detailed information. Here we have professional engineers and technicians to instruct you.

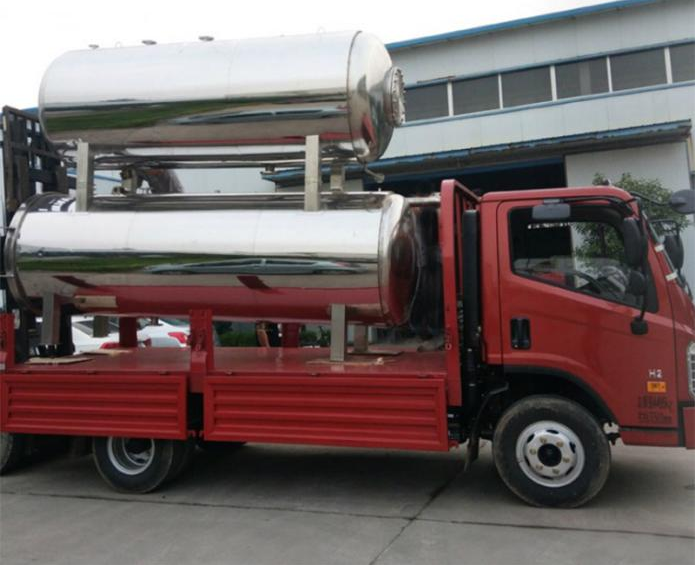

We will deliver your goods by LCL/20'FCL/40'FCL depending on your order.
Before delivery, our professional technician will do trial run for each product to check until everything is functional, you also can come to our factory and test our machine together with us.

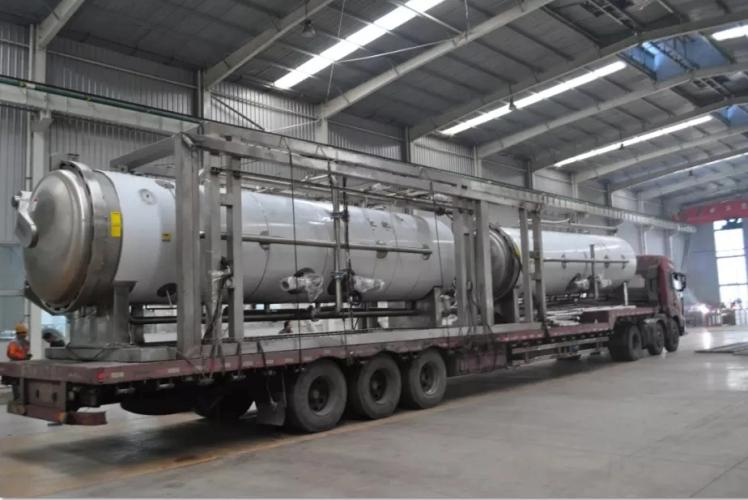

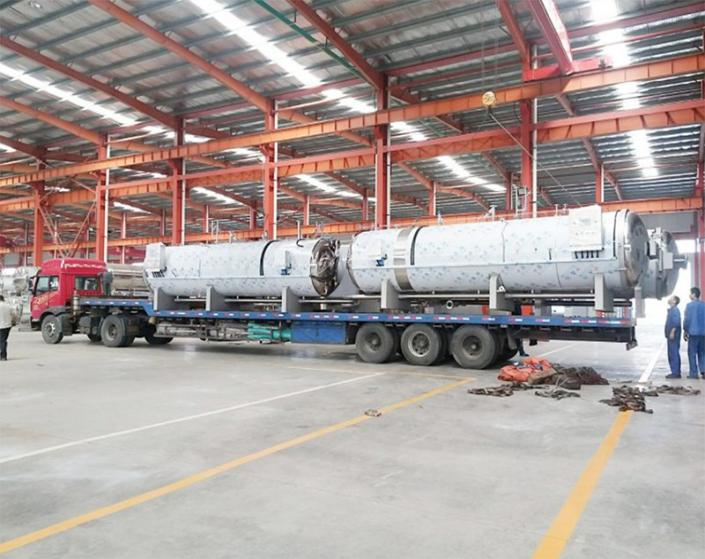

When loading, our workers will fix the retorts tightly with wire rope so that the retorts can't move in the container.

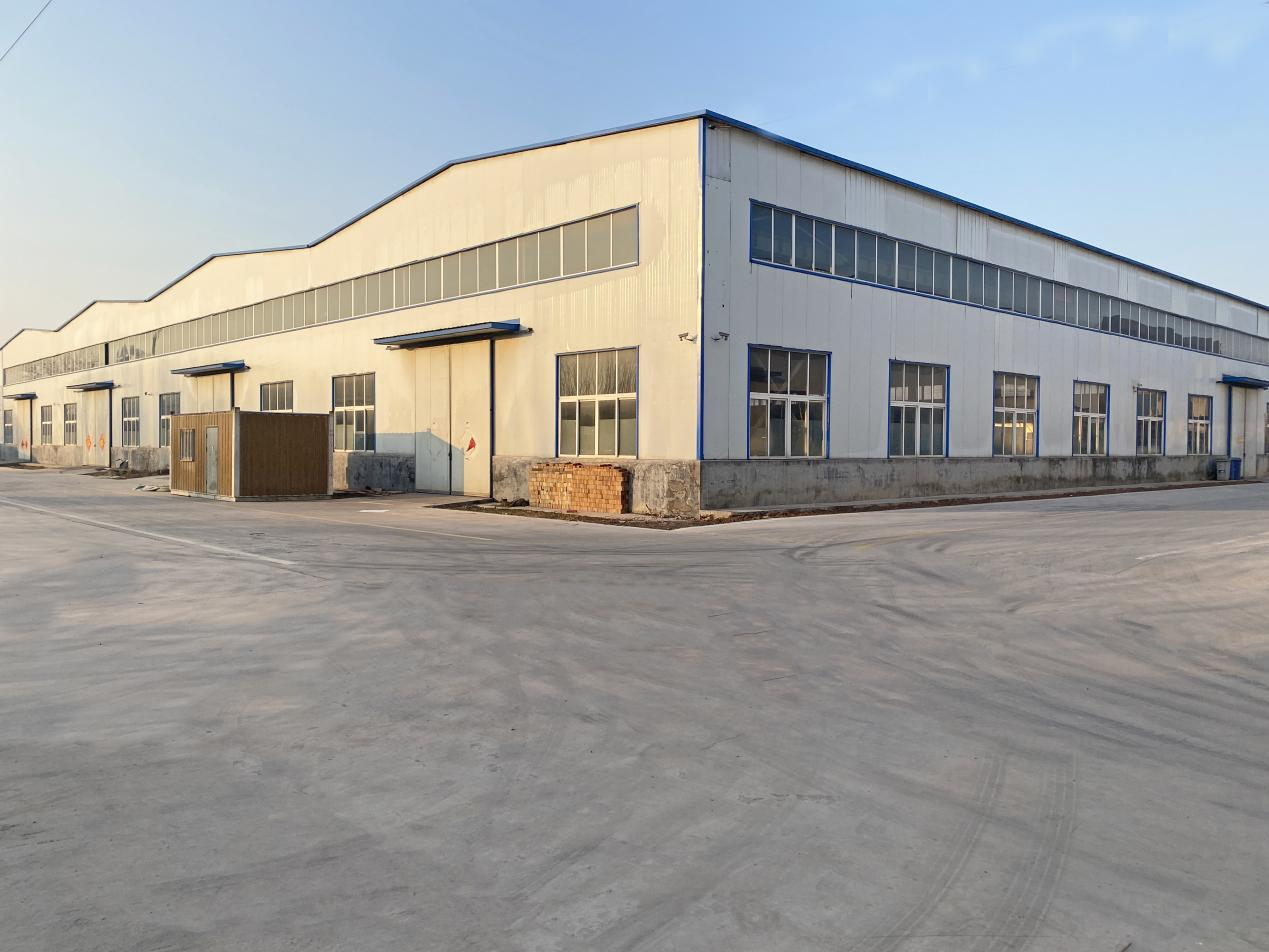

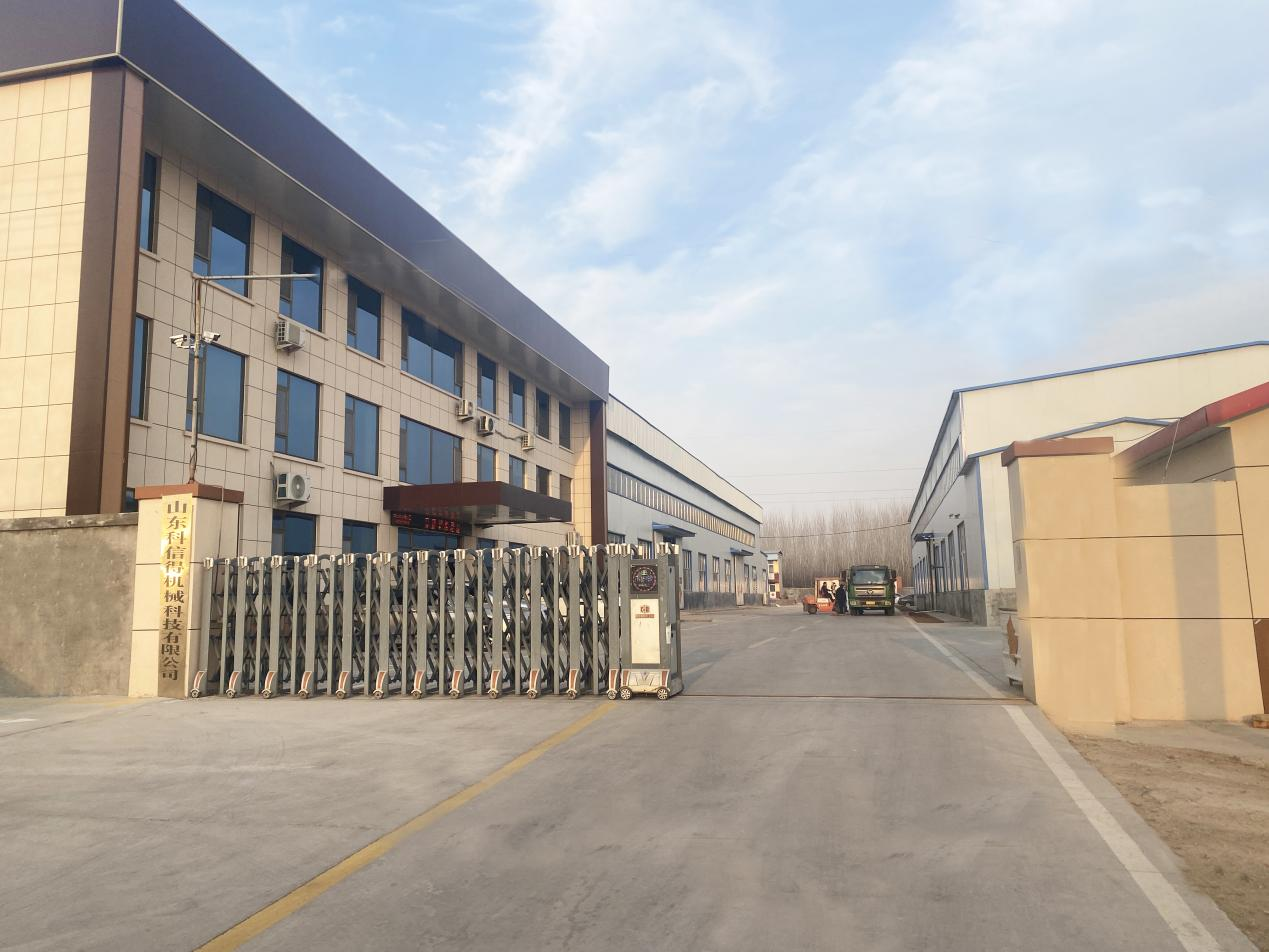

Shandong Kexinde Machinery Co.,Ltd is a national D1, D2 pressure vessel manufacturer integrating design, manufacturing, research and development in northern China. The company's food sterilization machine, jacket cooker, etc. Steam cooking equipment related products and composite autoclave, rubber vulcanization autoclave, have passed CE qualification certification and the products have a wide range of customers worldwide. The company's equipment production adopts advanced automatic welding, testing, and installation equipment, and has a production and R&D team of more than 200 people, ensuring that every product in the factory meets the national pressure vessel production standards. The Group is committed to the development of food retort pots, sandwich pots, vulcanized retreading equipment for rubber products, high temperature and high pressure production equipment for composite materials, carbon fiber equipment for aerospace, etc.
Q1: Are you manufacturer or trading company?
A: We are a professional manufacturer.
Q2: Where is your factory located?
A: Our factory is located in Zhucheng, Shandong, China. From Qingdao where closes to us 1.5 hours to Beijing, 1.75 hours to Shanghai, 4.5 hours to Guangzhou by air.
Q3: What is your business scope?
A: There are three categories, such as food sterilization machine, jacket cooker,and other food equipment .
Q4: How could we confirm the details of the products?
A: We will provide all the drawings for you to confirm or you can come here to conduct investigation.
Q5: Will you charge us for drafting if we have special requests?
A: No, we will not. Free of charge to make a draft or offer.
Q6: How long the warranty will be?
A: 1 Year warranty.
Q7: How about the installation? And what if the machine goes down?
A: We will do that. There are two options.
a. We could appoint our engineer to your company to debug and repair, as for the cost of this trip such as ticket, visa, accommodation and labor cost shall be on your side.
b. On-line service will be provided. If still is under guarantee period, the necessary accessories and parts will be provided free, but the transportation cost of it shall be on your side.
Q8: Can we become your distributor in our country?
A: Yes, welcome you! More details will be discussed if you are interested in being our agent.
