 French Fries Special Production Line Multi Functional Potato Product Processing Equipment

Short Description:

Frozen French Fries Potato Chips Making Machine is mainly composed of potato washing & peeling machine, cutting machine, blanching machine, dehydrator, frying machine, de-oiling machine, flavour machine and packing machine. Easy operation, high output and good production effect. Potato chips and French fries seem very smooth and uniform. Besides,the thickness could be adjusted freely.

PROCESSING PROCEDURES: (1st time ) Washing Peeling Machine →Hoisting Feeding Conveying Machine 1 → Double layers Potatoes Dressing Selecting Conveying Machine→ Potato Fries Cutting Machine →(2nd time) Brush Deep Washing Machine →Blanching and Color Protection Machine → Removing Water and Drying Machine → Picking & Conveying Machine → Frying Production Line→ Hoisting Feeding Conveying Machine2 → Air Cooling Machine → Freezing Machine for Frozen French Fries → Conveying Machine→ Packaging Machine


Product Detail

Product Tags

Product Parameters

Frozen French Fries Potato Chips Making Machine is custom-made and can be customized according to your different products,processing requirements, different outputs and other factors. In order to provide you with better solution details and accurate prices, you can tell us your needs and we will Customized made it for you and provide you with professional equipment that is best suitable for you. (All pictures are for reference only)

NO. Machine name Power(kw/hz) Dimensition
1 Hoister 1 (Feeding equipment) 0.55kw/380V/50Hz 2500*1000*1600 mm
2 Brush Rooler Peeling machine 3.0kw/380V/50Hz 3400*900*1500 mm
3 Double Layers Picking Conveyor 1.5kw/380V/50Hz 3000*1700*1500 mm
4  Cutting Equipment 1.1kw/380V/50Hz 950*800*950 mm
5 Air Bubble Washing Machine (Air Bubble & Slag function ) 3.0 kw/380V/50Hz 4000*1400*1500mm
6 Blanching Machine (Slag function & Hoister 95kw /380V/50Hz 4000*1400*2000mm
7 Vibration Machine  0.5 kw/380V/50Hz 1800*1200*1100mm
8 Air drying Machine (Dehydrator Line) 4.0kw/380V/50Hz 3000*1200*1600 mm
9 Picking Conveyor 0.55kw/380V/50Hz 3000*1100*1500 mm
10 Frying Line (Equipped with slag ,automatic control temperature and hoister functions ) 380V /50hz 5000*1400*2200 mm
11 Hoister 2(Feeding equipement) 0.55kw/380V/50Hz 3000*800*2000 mm
12 Five Layers Air Cooling Machine 4.6kw/380V/50Hz 5000*1600*1900m'm
13 Tunnel Quick-freezing machine(including refrigeration unit) 25.5kw/380V/50Hz+60P(45kw) 8600*3000*2900mm
14 Automatic Packing Machine 3kw/380V/50Hz 3500*2700*4000mm

Product Details

Equipment1

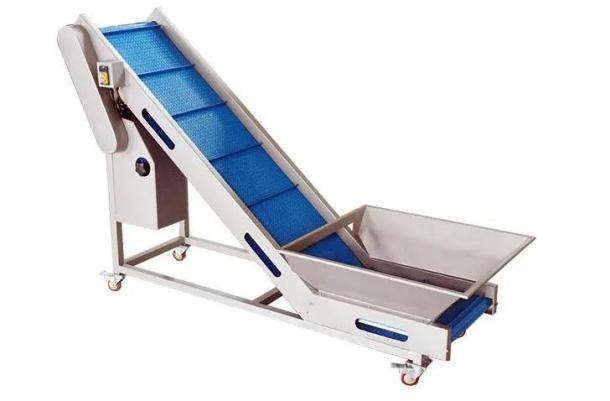

Potato Hoister -1 :
Function:Lift and transfer the potato raw material to cleaning and peeling machine.

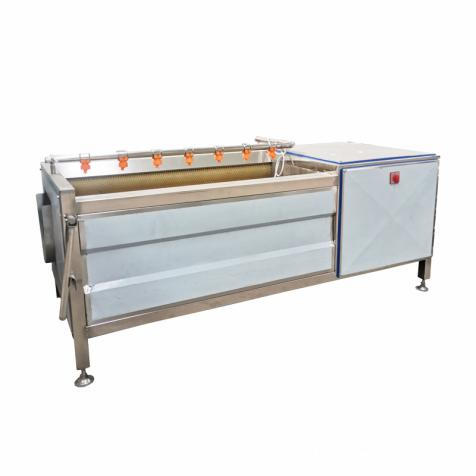

Brush Rooler Washing & Peeling machine for potatoes
Function: Wash and Clean the surface impurities of the potatoes & peel potatoes.

Equipment2
Equipment3

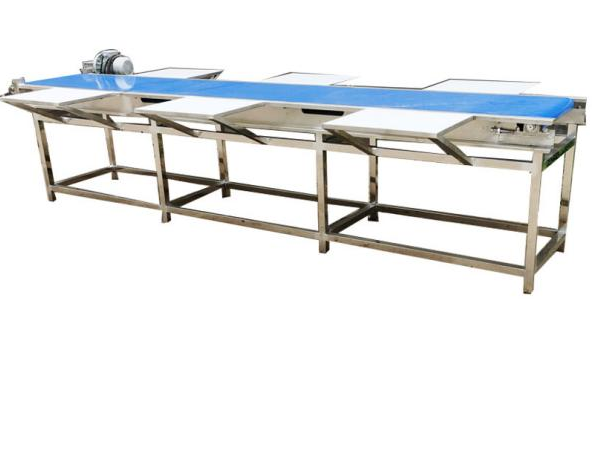

Double Layers Sorting & Picking Conveyor for potatoes
Function: There are operation stations on both sides, picking or repairing unqualified potatoes

Potato Cutting Machine ( Fries :8*8mm 10*10mm or made to order ):
Function: potato cutting, cutting size: 8*8 ,10*10mm or made to order. if requires different sizes, you need to order different sizes of the cutting machine .

Equipment4
Equipment5

Air Bubble washing Machine (automatically separate starch) :
Function: wash the cutted well French fries and to remove the starch, separate the starch out of the equipment, and collect them.

French Fries Air cooling / drying Machine (De-Water line) :

Function: Air drying removes moisture from the surface of the French fries and prevents splashing during frying.

Equipment6
Equipment7

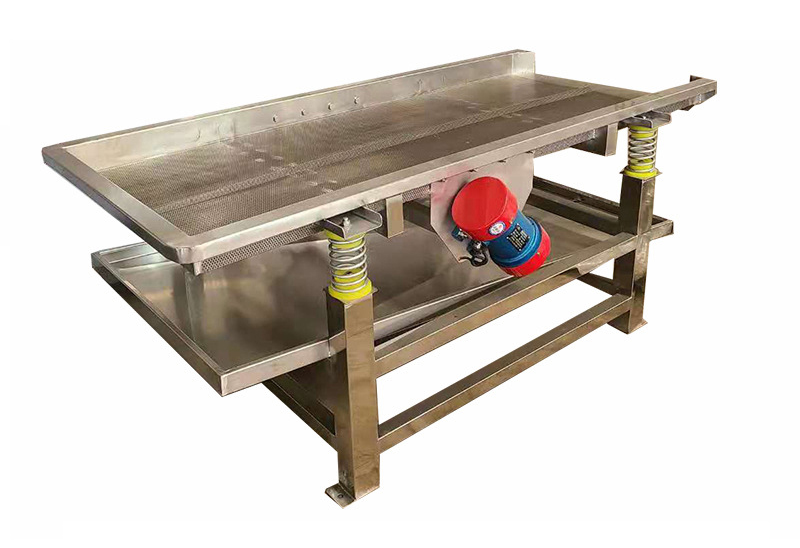

Fries Vibrating machine (remove impurities) :

Function: Vibrate and remove fries impurities, and separate the scrap or waste material generated during the cutting process to
improve the yield.

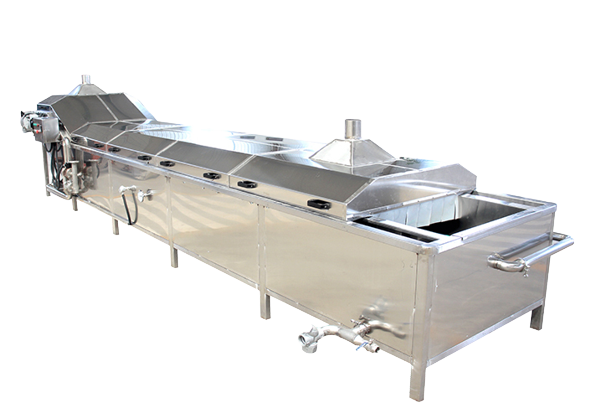

French Fries Blanching Machine :

Function: Blanching and protecting the French fries color to improve product quality. The equipment has the functions of automatic
temperature control, automatic setting of blanching time and temperature, and automatic lifting and other functions.

Equipment8
Equipment9

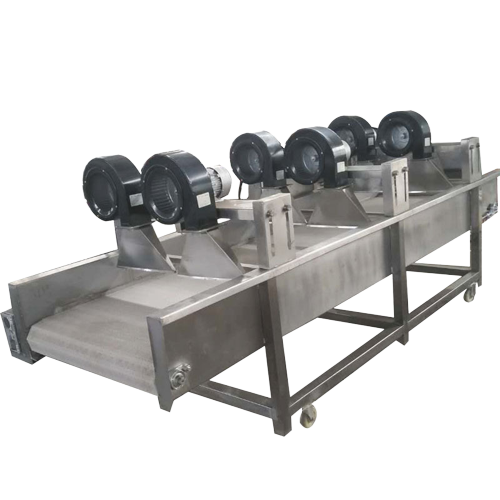

French Fries Air cooling / drying Machine (De-Water line) :
Function: Air drying removes moisture from the surface of the French fries and prevents splashing during frying.

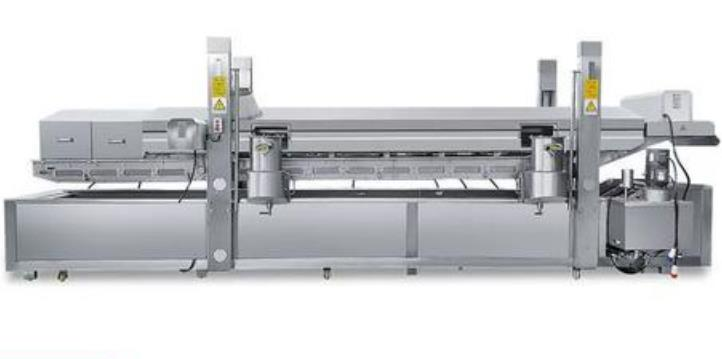

Electric Heating Frying Line for french fries :
Function: Frying French fries, The equipment has the advantages of automatic heating, automatic temperature control, and the
frying time and oil temperature can be setting freely, automatic filtration and automatic lifting. Contains a set of 2700L oil tank.

Equipment10

Company  Profile

Shandong Kexinde Machinery Co.,Ltd is the professional and original equipment manufacture for the Food processing machines in the global food industry .

Our company have independent import and export rights , we are specialized in R&D manufacturing and they are mainly engaged in 200kg fully automatic frozen potato chips crisp french fries machine production line , potato french fires processing production line / potato frozen french fries making machine , Potato french fries production line , potato fries machinery , Automatic Continuous Frozen French Fries Production Line for plant , Frozen french fries processing production line ,potato chips production line,Food Frying machine,food forming & coating machine, vegetable & fruit washing and processing machines etc.

Equipment11
Equipment12

USA,Canada,India,England,Russia,Italy,Spain,France,Algeria,MiddleEast,Australia,Singapore,Cuba,Vietnam,Malaysia,Indonesia,Chile,

SouthAfrica,Norway,

Uzbekistan,Algeria,Pakistan,SaudiArabia,Venezuela,Egypt,Afghanistan,Azerbaijan,Israel,Nigeria,Philippines,SriLanka,Sudan,Thailand,

Kenya,Poland,Korea,Pakistan,Mongolia,Rwanda,

Cameroon,Iraq,Jordan,Mauritius,Panama etc from Asia, Europe, Africa ,Latin America,South America, North America .

Equipment13

Product packaging

Equipment14
Equipment15
Equipment16
Equipment17

Quality Control

We can provide you the very good quality with very good performance and configuration and perfect functions with professional and intimate services food fruits vegetable meat products processing machines and production line . We are the professional and original equipment manufacture with full customization full aspects customized services rich experience for more than 15 years since 2008 year and we have self-managed import and export rights with many old customers from more than 130 countries all over the world . We have a complete and standardized quality control process including the quality assurance and traceability identification of raw materials and The supplier inspects 100% of finished products. and we have our own R&D engineers team .

FAQ

1. You are the factory ?
Yes , we are manufacturer , and it is the food machine factory and Is the professional and original equipment manufacture for the French Fries Potato Chips Making Machine in the global food processing industry .We Focus On Food Processing Equipment,Factory Direct Sales, Processing Customization,Quality Assurance,Service First.

2-What is your main producing food machine products ?
we are specialized in R&D manufacturing for more than 15 years For Food & beverage ( Fruits & Vegetable & Meat ) processing machines and production line, including the potato / corn / cucumber / tomato / date / mushrooms making machine and processing Production line, meat products making machines ,Snacks Food Frying processing machine,food processing jacketed cooking machines,, food & beverage sterilizing machine etc.

3-Which countries have your French Fries Potato Chips Making Machine exported to ?
Our French Fries Potato Chips Making Machine are very hot sale and exported well to many foreign counties and created the good and long term cooperation relationships with them , they are mainly located in
USA,Canada,India,England,Russia,Italy,Spain,France,Algeria,Middle
East,Australia,Singapore,Cuba,Vietnam,Malaysia,Indonesia,Chile,South
Africa,Norway,Uzbekistan,Algeria,Pakistan,SaudiArabia,Venezuela,Egypt,Afghanistan,Azerbaijan,Israel,Nigeria,Philippines,

SriLanka,Sudan,Thailand,Kenya,Poland,Korea,Pakistan,Mongolia,Rwanda,

Cameroon,Iraq,Jordan,Mauritius,Panama etc from Asia, Europe, Africa ,Latin America,South America, North America .
