100-500kg/h Potato Machine Frozen French Fries Machinery Frozen Fries Machinery
Lifting machine——Washing and peeling machine——Picking line——Lifting machine ——Cutting machine——Rinsing machine —Dust cleaning machine——Blanching line ——Air-dryer dewatering machine——Continuous Frying machine—— Vibrating screen——Air-dryer deoiling machine——Vibration leveling machine—— Freezer machine——Automatic packing machin

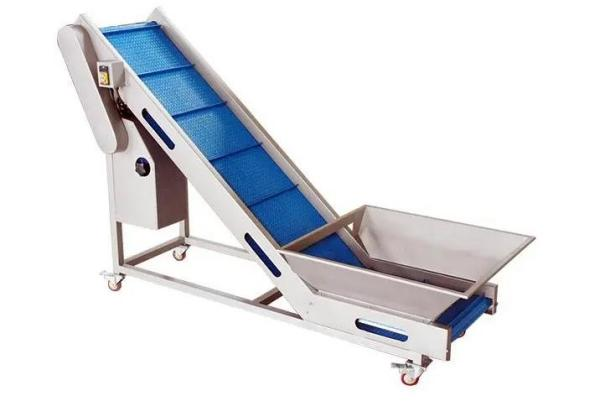

1. Loading elevator - automatic lifting and loading, convenient and fast, saving manpower.

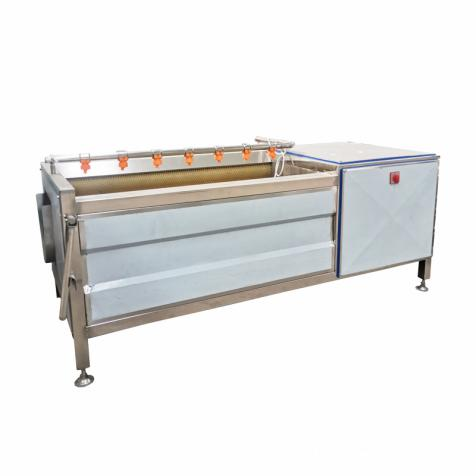

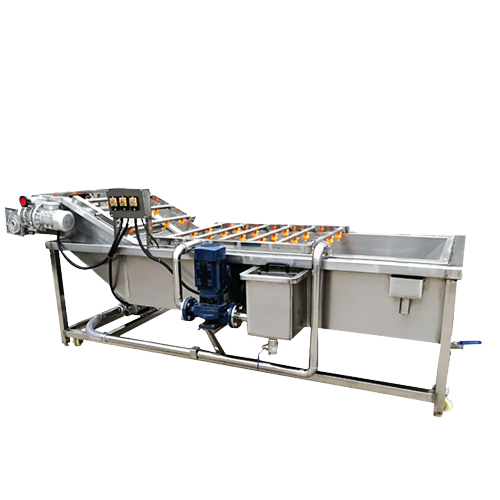

2.Washing and peeling machine - automatic potato cleaning and peeling, energy saving.

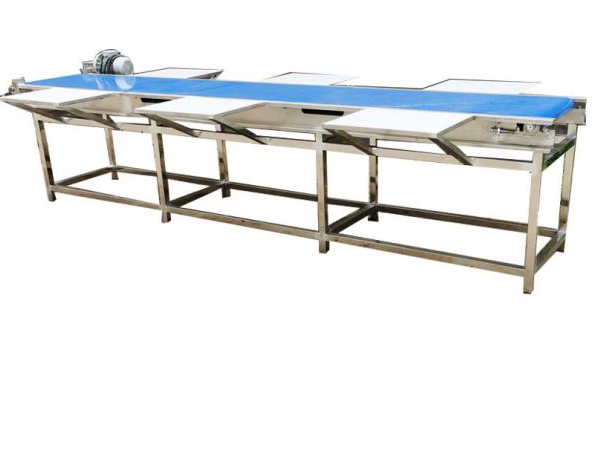

3.Sorting conveyor line - remove the rotten and pitted parts of potatoes to improve the quality.
4. Cutter-adjustable in size.

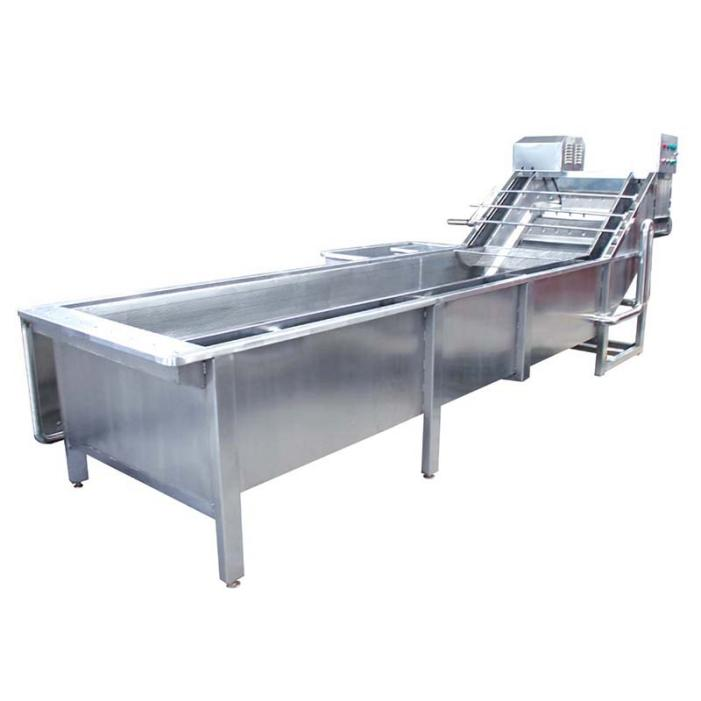

5.Washing-Clean the starch on the surface of french fries.

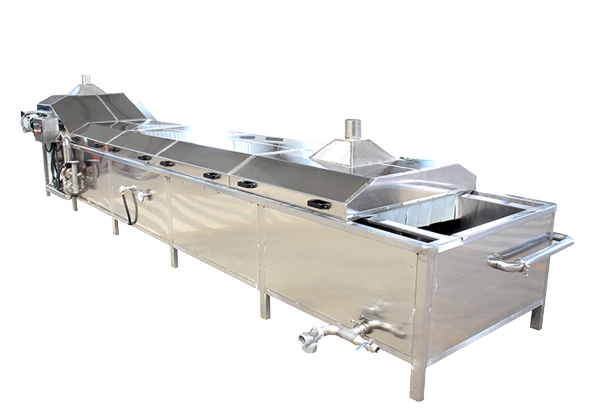

6.Blanching machine - inhibit the activity of active enzymes, and protect the color.
7.Rising and cooling machine - quickly cool the french fries and maintain the color and taste.

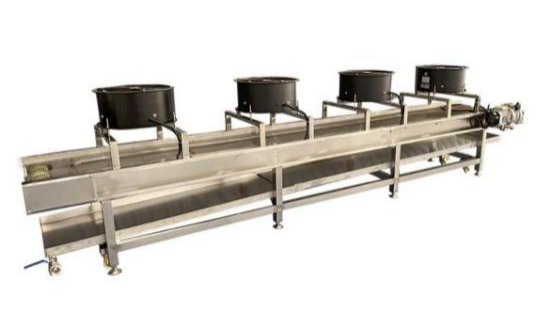

8. Dewatering machine - the air-cooling effect removes the surface moisture of the potato chips, and transports them to the fryer.

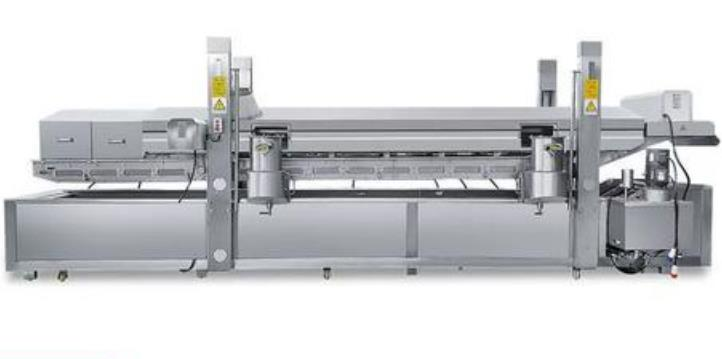

9.Frying machine - frying for coloring, and optimizing the texture and taste.
10.Deoiling machine- to remove oil and cool down - blow off excess oil on the surface, and fully cool down the potato chips so that they can enter the flavoring machine.
11.Tunnel freezer -quickly freeze french fries to maintain their color and taste.

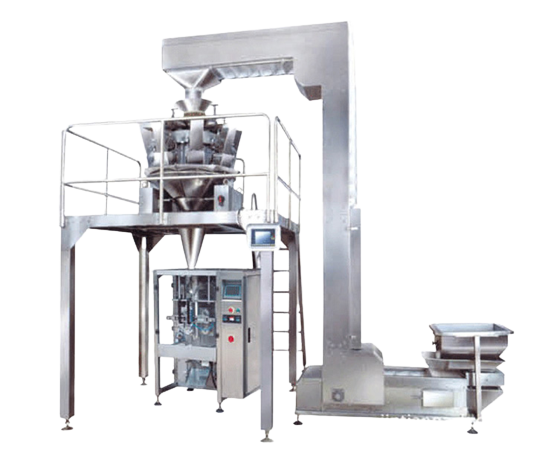

12. Packing machine - according to the weight of the customer's packaging, automatic packaging of potato chips.
|
Item Name |
Power(kw) |
Voltage |
Dimension(mm) |
|
Elevator |
0.75 |
380v/50HZ |
2000*800*2000 |
|
Washing and Peeling Machine |
4.75 |
380v/50HZ |
2600*900*1500 |
|
Sorting Conveyor Line |
0.75 |
380v/50HZ |
3000*900*900 |
|
Potato Chips Cutter Machine |
1.5 |
380v/50HZ |
950*800*950 |
|
Rinsing Machine |
5.5 |
380v/50HZ |
4000*1600*900 |
|
Blanching Machine |
125 |
380v/50HZ |
4000*1600*950 |
|
Air Dewatering Machine |
7.1 |
380v/50HZ |
4000x1200x1400 |
|
Sorting Conveyor Line |
0.75 |
380v/50HZ |
3000*800*950 |
|
Elevator |
0.75 |
380v/50HZ |
2500*800*1300 |
|
Frying Machine |
123 |
380v/50HZ |
4500x1200x2600 |
|
Vibrating Type Oil Removing Machine |
1.5 |
380v/50HZ |
1500x1000x1300 |
|
Air Drying Machine |
7.1 |
380v/50HZ |
4000x1200x1600 |
|
Elevator |
0.75 |
380v/50HZ |
2400x800x2200 |
|
Flavoring Machine |
0.75 |
380v/50HZ |
2600*1000*1600 |

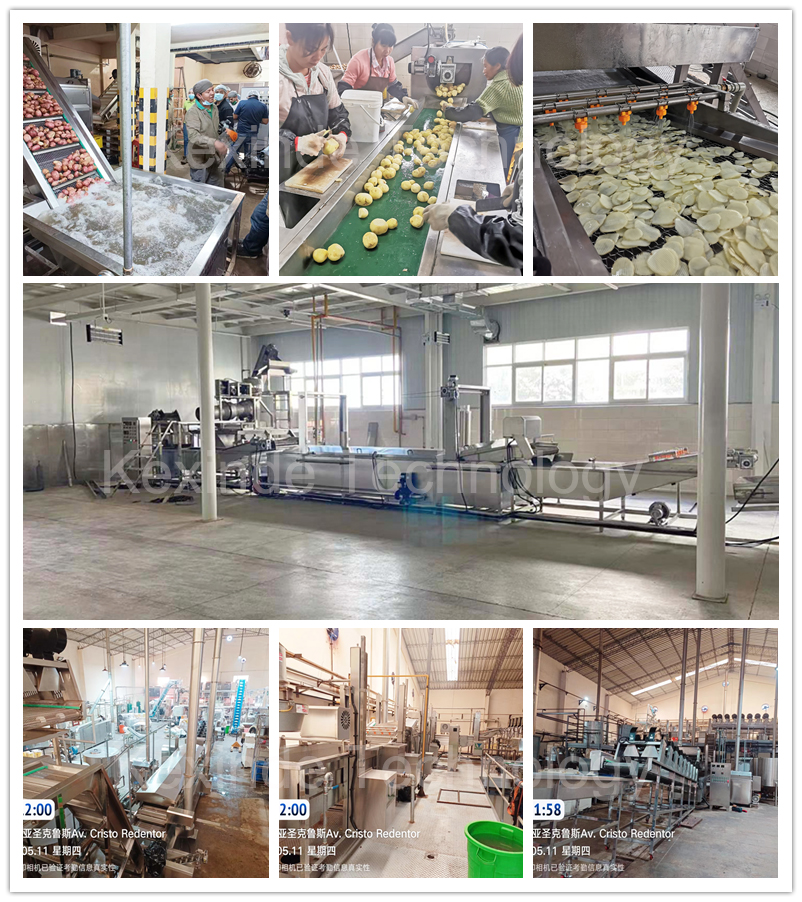

Shandong Kexinde Machinery Technology Co.,Ltd is a professional industrial continuous frying machine manufacturer. Over more than 20 years development, our company have become a collection of technical research and development, process design, product manufacturing, installation training as one of the modern machinery manufacturing industry enterprises. Based on our long company history and vast knowledge about the industry we worked with, we could offer you the professional technical support and help you enhance the efficiency and extra value of the product.Our french fries and potato chips production line has feedback all over the world.
Q1: Are you factories? What do you mainly do?
A1: Yes, Kexinde is mainly engaged in central kitchen vegetable cleaning and drying production lines, plastic basket and tray cleaning machines, potato chip production lines, fruit and vegetable processing production lines, pasteurization production lines, thawing production lines, high-temperature fryers, fried line, large industrial steaming and baking machine, steam peeling machine, etc.
Q2: Where is your factory? Which port is close to?
A2: Our factory is in Zhucheng City, Shandong Province, China, and is very close to Qingdao Port.
Q3: Can you provide on-site installation?
A3: Yes, We provide, please contact our business manager for specific details.
Q4：What's your company after-sales service?
A4: Our machine will be checked three times before shipment to ensure that the machine itself has no problems. If the machine has some problems under incorrect operation:
1. improper operation problem, we will solve all the usage problems by video call.
2.machine parts problem, we will send you accessories to ensure the normal use of the machine.
3.In addition, our engineers go abroad every year to help customers solve problems they cannot solve. Give customers the best quality machine, the best service,Is the standard of our company.
Q5：Any warranty?
A5：One year warranty. Frankly speaking, The quality of our machines is very stable. The machine will be tested three times before leaving the factory to ensure that the machine is in the best condition when it arrives at your address. Some minor problems of the machine are usually caused by incorrect operation by novices, so we provide a full set of English instruction videos and common problem solving videos, To help users better understand it. On the other hand, we put a set of spare parts in the toolbox of the machine in advance. During your use, if you need any spare parts, we can send it to you via UPS, and it only takes 5-7 days to arrive at your door. During use, if you have any questions, we can make a video call at any time.
